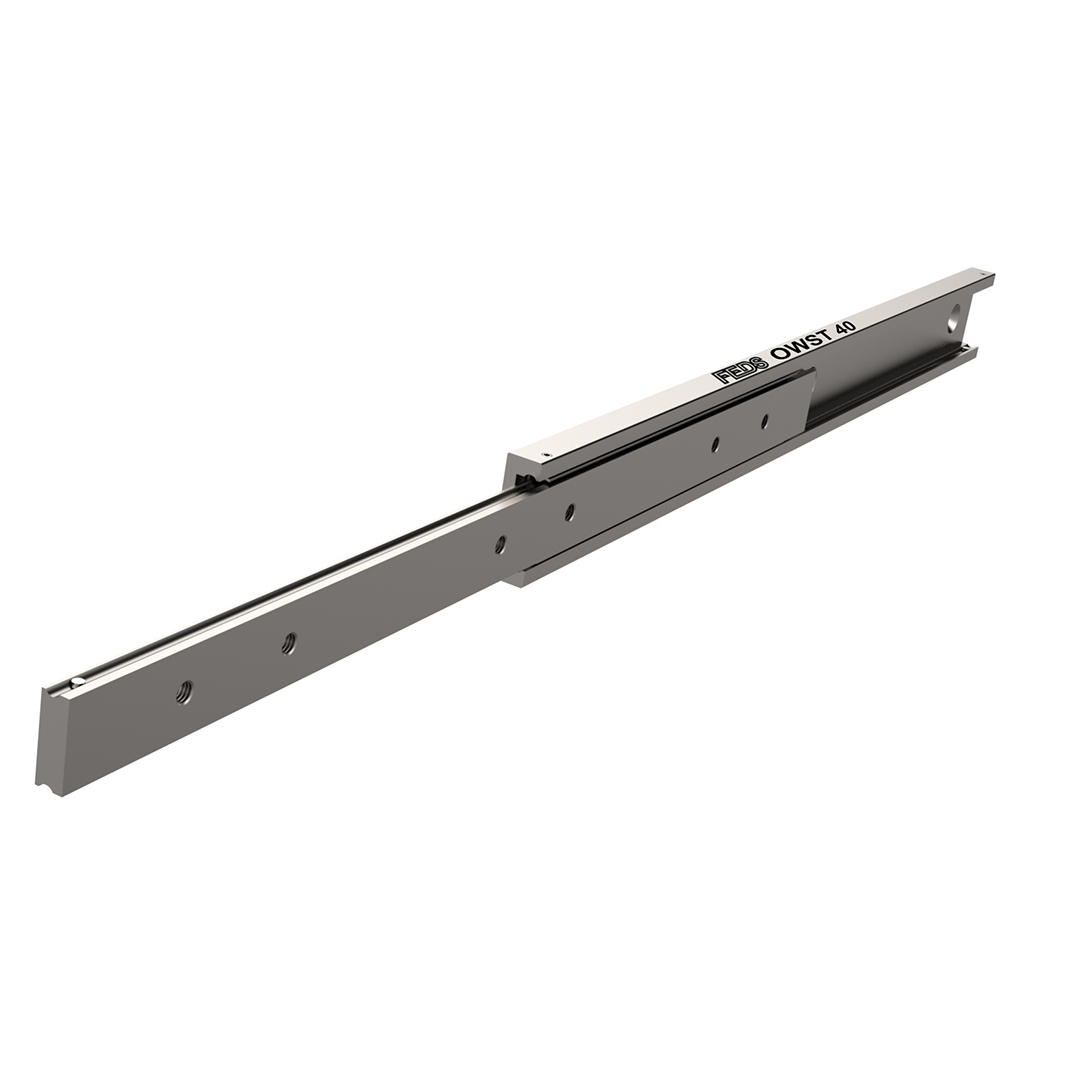

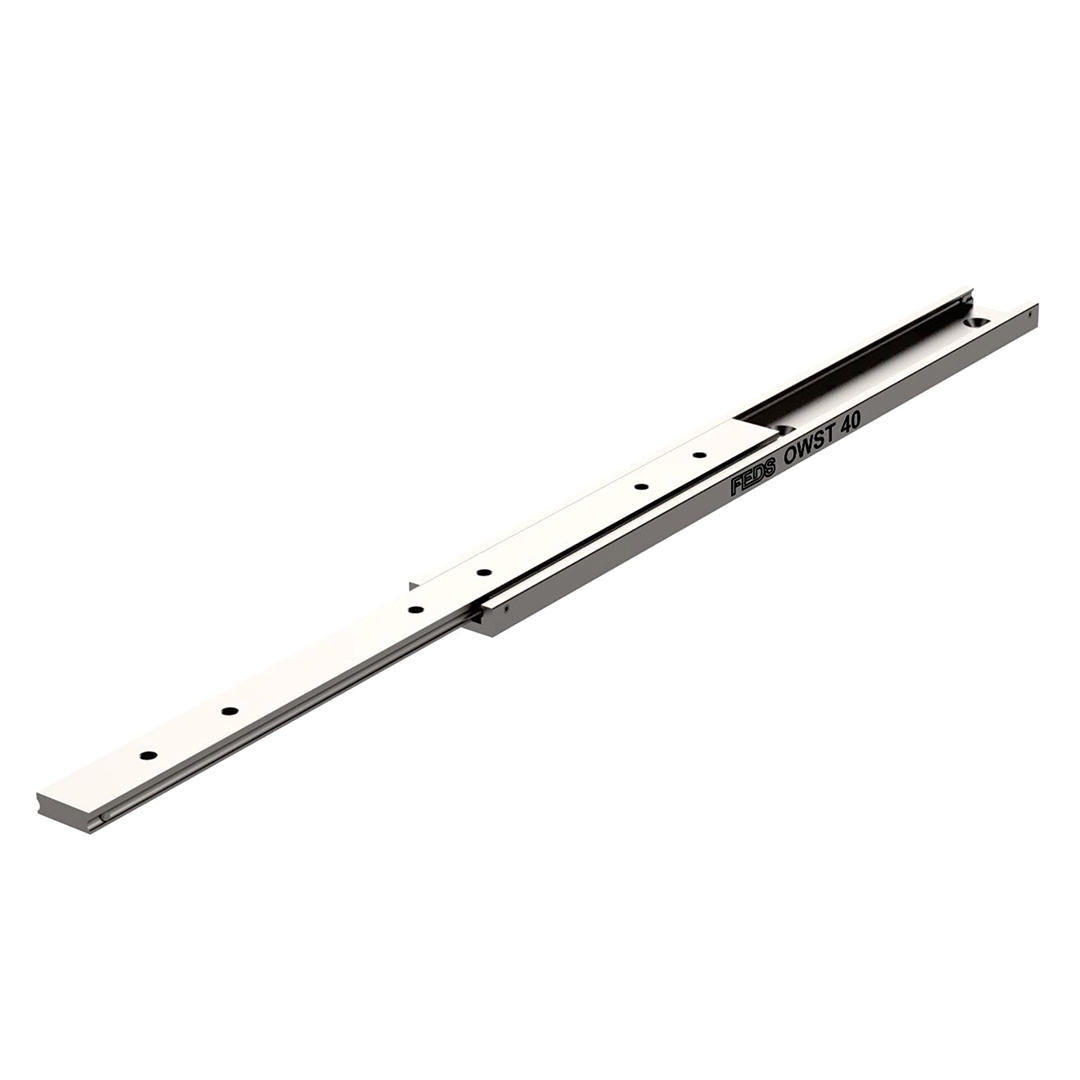

The OWST-40 is a rugged slide with an extension front and rear, equal to the closed length, which has been designed for load maximisation from a small space envelope. Particularly suited to heavy duty seating for trains and military, it also has a wide range of applications where torsional strength is paramount.
This is a heavy load/duty extension front and rear slide (60–360Kg/pair). At 700mm a pair has a travel of 700mm and a load capacity of 360Kg. Constructed from cold drawn steel sections and precision milled ball tracks the OWST-40 telescopic slide has a good level of resistance to shock and vibration when supporting a static load in the closed position. Accordingly, this slide is well suited to mounting on vehicles. Constructed from solid steel section, this telescopic slide offers a low overall slide height for its high load capacity. The slide also has good resistance to applied loads when in the extended position making it an excellent choice for dynamic applications and manually operated systems.
The OWST-40 drawer slide may also be used in its minor axis but the load capacity will be reduced to 60% of stated load stated for us in major axis. It can be supplied with a 70% extension, which will slightly reduce the load capacity. Please ask consult our sales engineers for this no cost option.
The slides are manufactured from cold drawn steel C45E+C in accordance with EN 10277. Standard ball cages are manufactured from zinc plated sheet metal, and the ball bearings are carbon steel C85 G100 in accordance with DIN 5401. A single OWST-40 weighs 4.21 kg per metre.
