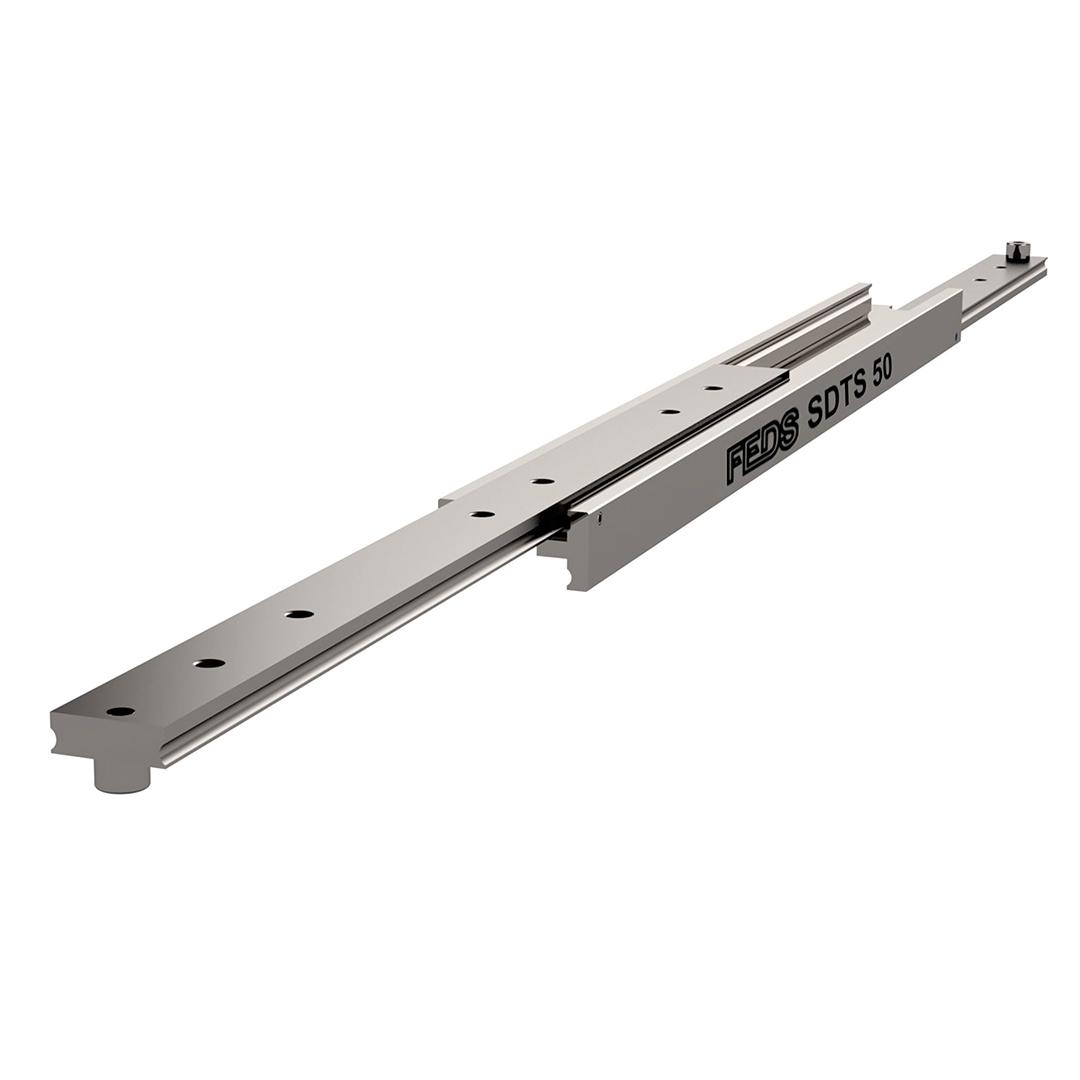

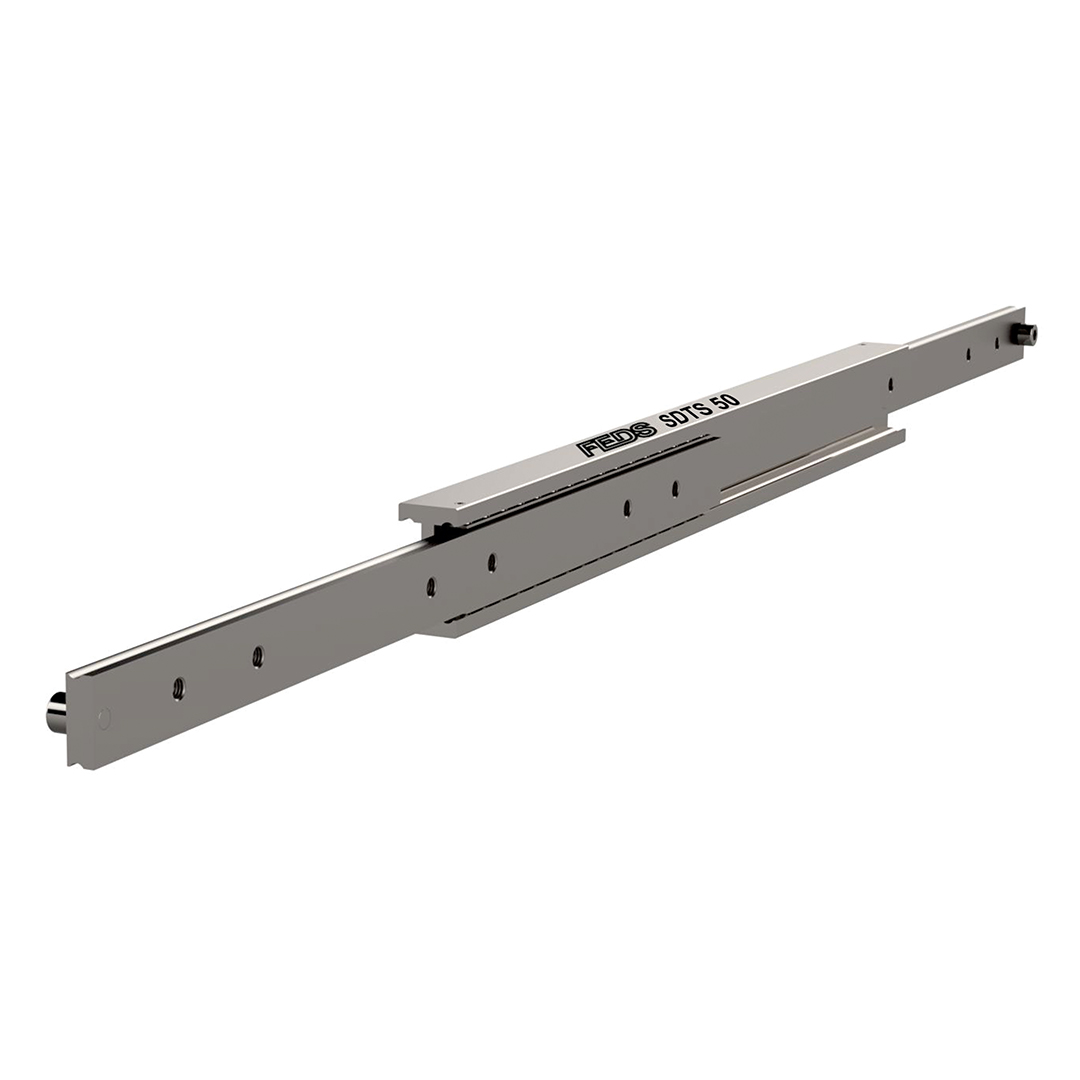

The SDTS-50 telescopic slide is manufactured from marine grade 316L (1.4404) stainless steel (inox) offering a very high corrosion resistance. The austenitic structure of 316L stainless gives excellent toughness, even at cryogenic temperatures. The beams are polished to a bright finish on all surface areas as standard.
The SDTS-50 is particularly suited for highly corrosive applications with prolonged exposure to the elements. Having a compact 50mm profile, this makes it an excellent choice for undercarriage train battery rafts in hostile conditions or military vehicles working in sub-zero climates. This is an extreme load/duty full extension telescopic slide (60Kg–280Kg/pair) suitable for a wide range of applications. At 500mm 1 pair has a full extension load capacity of 280Kg.
Constructed from milled stainless steel sections, with machined ball tracks for accuracy, it has excellent levels of shock and vibration resistance. Accordingly the product is well suited to supporting generators and heavy machine guards, even with an over extension of 120%. The beams and ball bearings are manufactured from austenitic grade 316L. End stop bolts are grade 304 with cages made from ferritic grade 430 stainless, for complete corrosion protection.
Due to the extreme strength of the mobile ‘I’ beam, this slide is robust to applied loads when in the extended position making it an excellent choice for dynamic applications. Unlike many other slides manufactured from rolled steel ‘C’ sections. There are no plastic parts in the manufacture of this range, making it ideal for high temperature use. A single SDTS-50 weighs 8.97 kg per metre.
