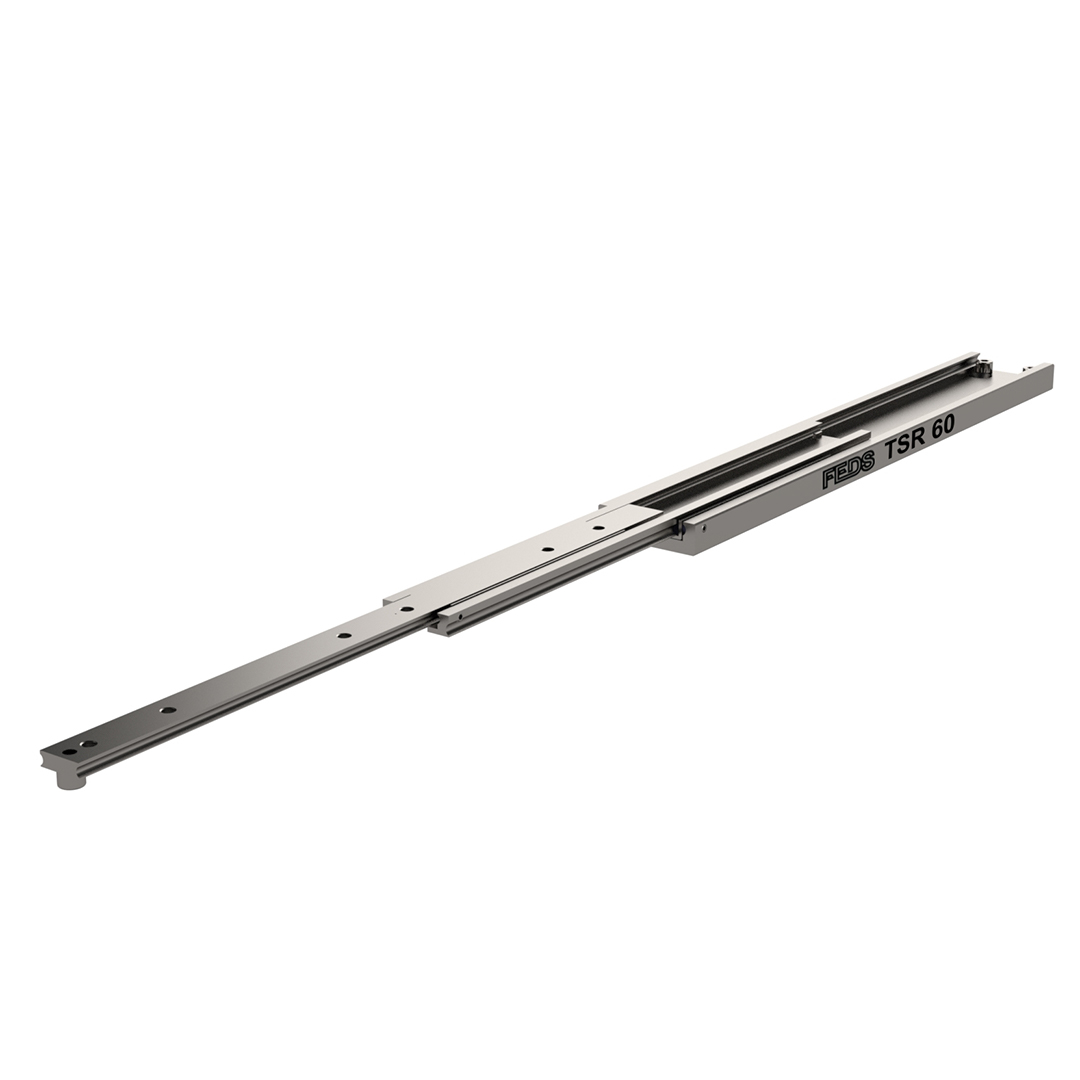

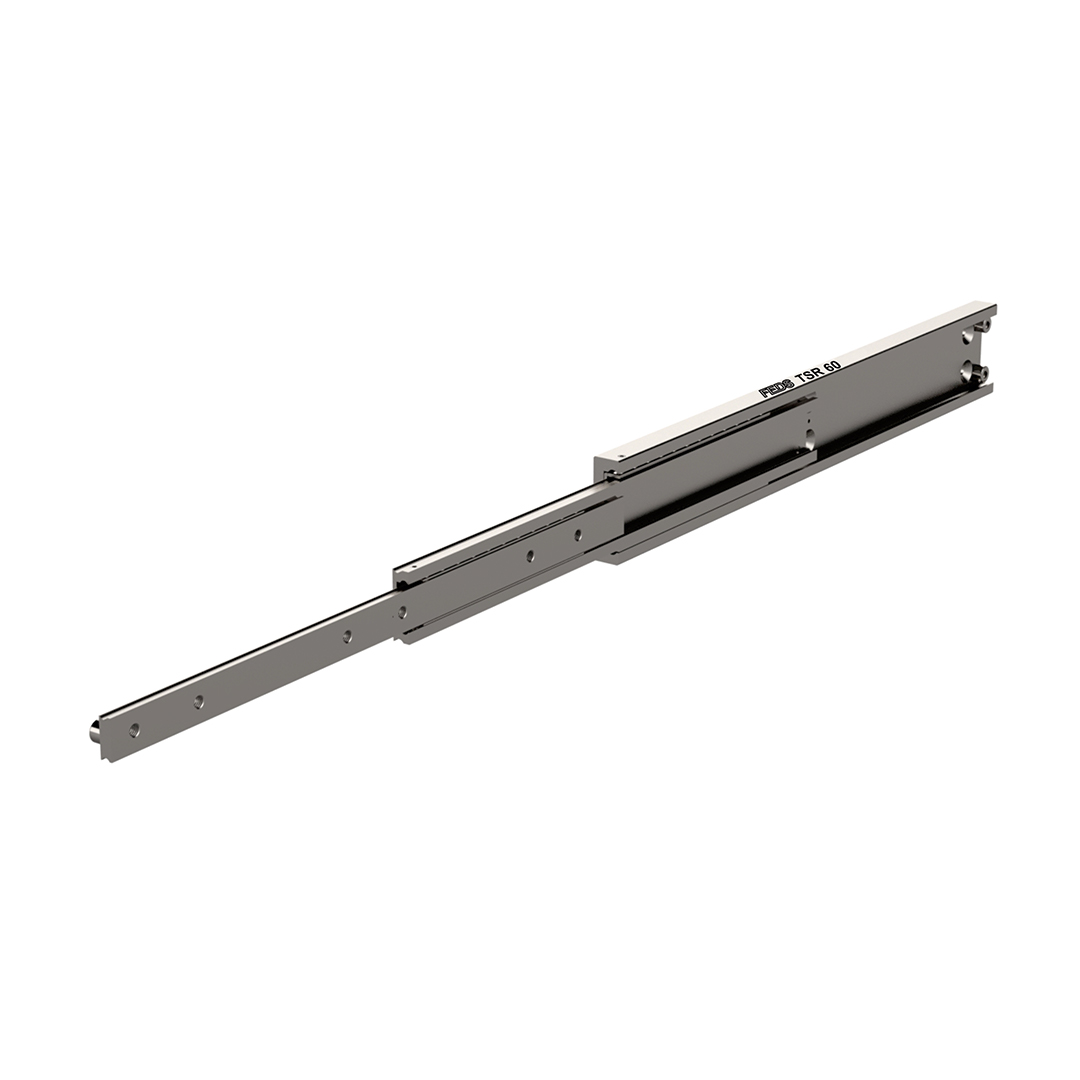

The TSR-60 is particularly suited for dynamic loading where shock and vibration with torsional demands are required. Having a low 60mm height with slim 26mm width, makes it an excellent choice for vehicular drawer systems and train battery boxes, where space is restricted. Military uses for this slide are extensive, especially with optional stainless steel bearings fitted to reduce corrosion.
This is a compact extreme duty, full extension telescopic slide (150-314kg/pair), suitable for a wide range of applications. At 650mm 1 pair has a full extension load capacity of 314Kg.
Constructed from cold drawn steel sections, with machined ball tracks with 4 point contact for smooth running and accuracy, it has excellent levels of shock and vibration resistance. Accordingly, the product is well suited to supporting long or wide drawers subject to extreme loading when stowed in the closed position. The TSR-60 slide may also be used in the minor axis (flat) but the load capacity will be reduced to approximately 40% (depending on slide length) with an increase in deflection. A single TSR-60 weighs 8.6 kg per metre
Due to the extreme strength of the mobile ‘I’ beam, this slide is robust to applied loads when in the extended position making it an excellent choice for dynamic applications, unlike many other slides manufactured from rolled steel ‘C’ sections. There are no plastic parts in the manufacture of this range, making it ideal for high temperature use. The slides are manufactured from cold drawn steel C45E+C in accordance with EN 10277. Standard ball cages are manufactured from zinc plated sheet metal, and the ball bearings are carbon steel C85 G100 in accordance with DIN 5401.
