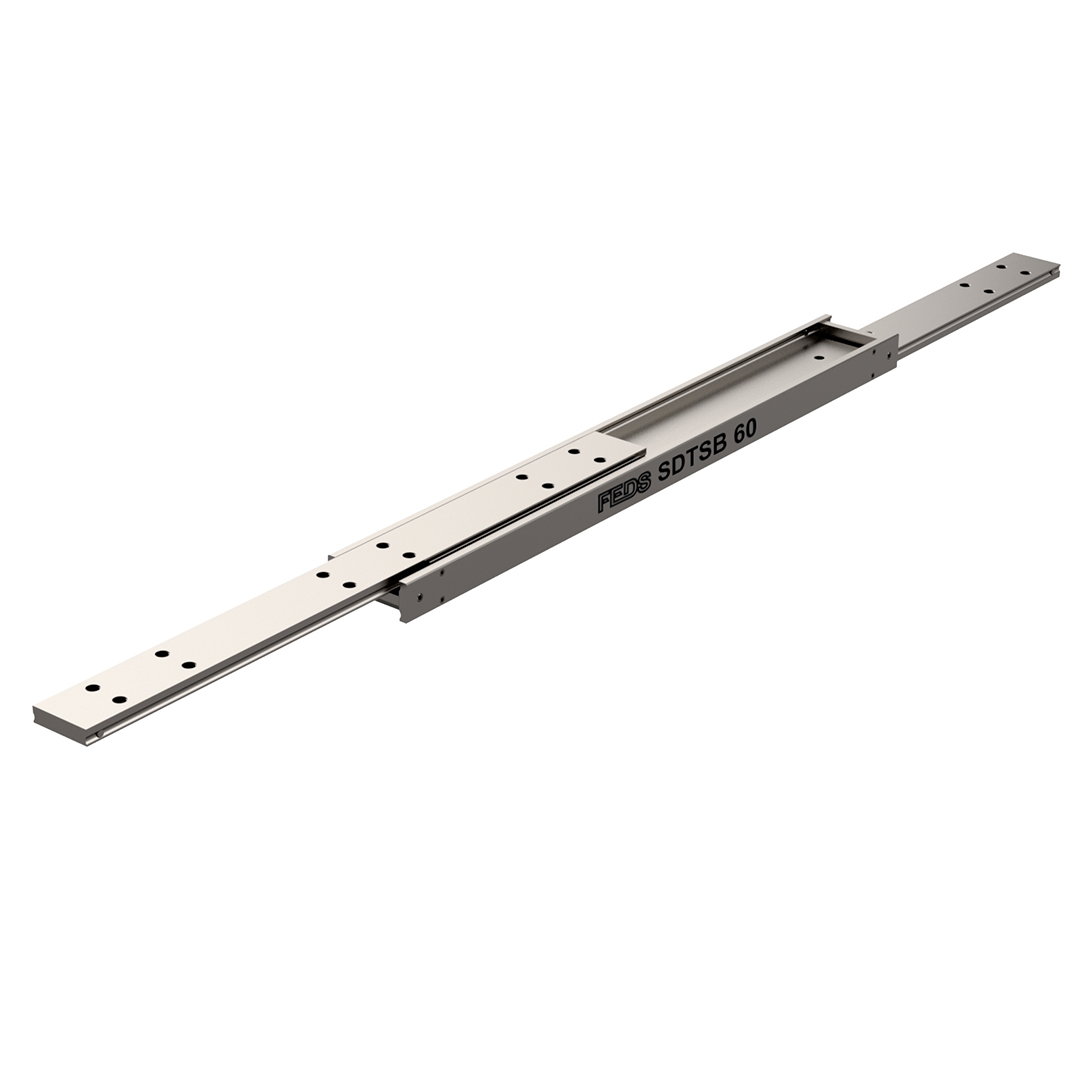

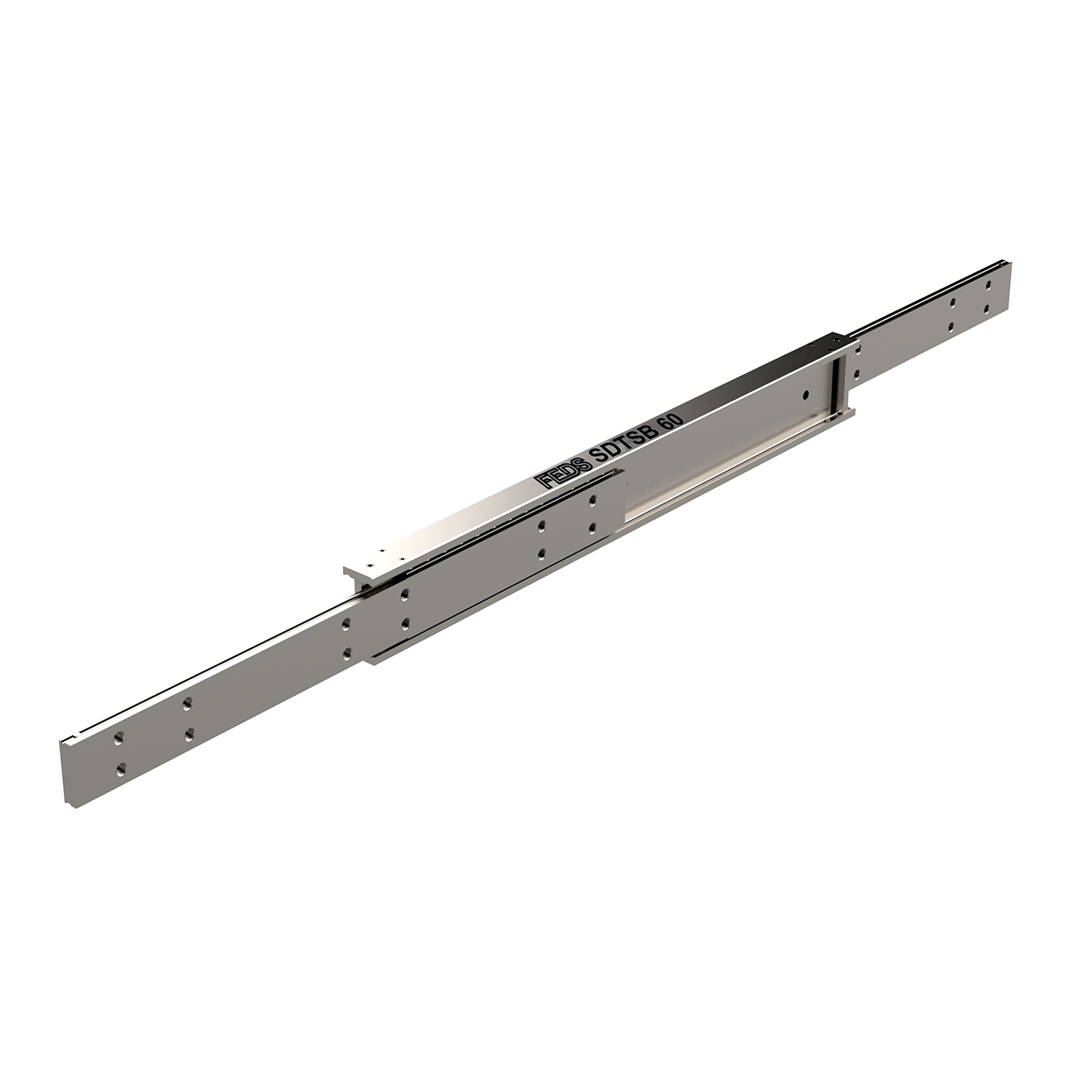

FEDS SDTSB-60 | 160 - 440 Kg telescopic slide stainless steel 316L
Click to enlarge
FEDS SDTSB-60 | 160 - 440 Kg telescopic slide stainless steel 316L
FEDS SDTS-50 | 60 - 280 Kg telescopic slide stainless steel 316L
SDTS-50 | 60 - 280 Kg
Back to products
FEDS DTS-45 | 80 - 160 Kg telescopic slide steel C45
DTS-45 | 80 - 160 Kg

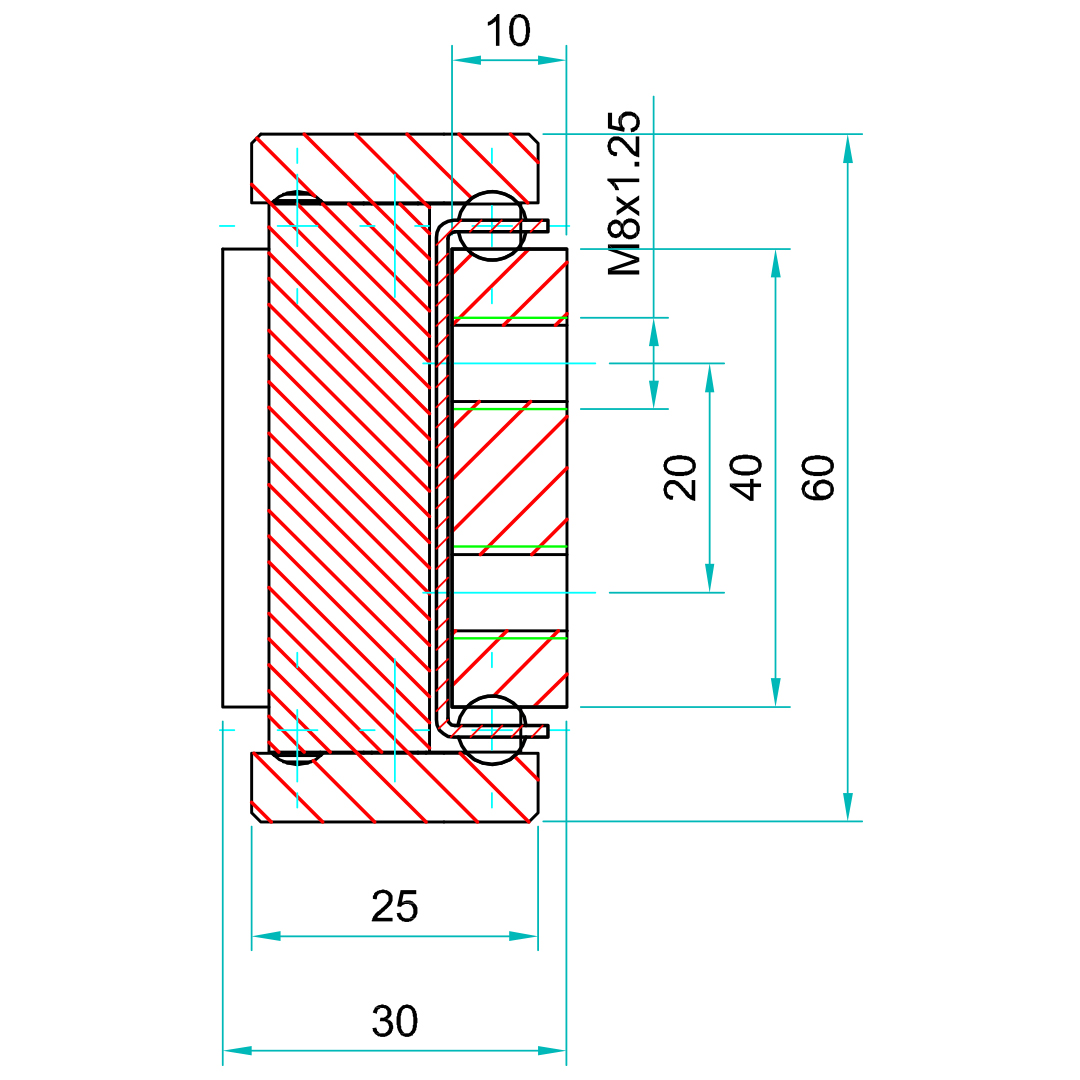

SDTSB-60 | 160 – 440 Kg

Height 60mm
Width 30mm
Load Capacity 160-440kg
Installation Length 200 – 2000mm
Extension Length 200 – 2000mm
Slide Type Bi directional
Material Type Stainless steel 316 L
Categories: Bidirectional slides, Stainless steel
Share:
  • Description
  • Additional information
Description

The SDTSB-60 offers total extension front and rear. This is made possible by an internal rocker device which releases each beam in sequence. Ideal for thru-truck drawers or train battery boxes where access from either side may be limited. This is a heavy load/duty full extension telescopic slide (160-440 kg/pair) suitable for a wide range of applications. At 600 mm 1 pair has a full extension load capacity of 440 kg.

Constructed from milled stainless steel (inox) 316L sections, with machined ball tracks for accuracy, it has excellent levels of shock and vibration resistance. Accordingly, the product is well suited to operating in extreme high temperatures through to as low as cryogenic. The slide beams, cages and ball bearings are manufactured from austenitic grade 316L (1.4404). End stop bolts and retaining pins are austenitic grade 304 (1.4301), completing the corrosion protection, There is the bespoke option to manufacture an all 316L product on higher production volumes.

The beam release mechanism guarantees that one beam is held firm whilst the other travels. Unlike some systems where the load is pulled through the slide and the ball cages misalign and jam.

Due to the extreme strength of the mobile ‘I’ beam, this slide is robust to applied loads when in the extended position making it an excellent choice for dynamic applications. Unlike many other slides manufactured from rolled steel ‘C’ sections. There are no plastic parts in the manufacture of this range, making it ideal for high temperature use. Grade 316L is an austenitic stainless steel with a very low electro-magnetic signature, so ideal for defence applications.

The SDTSB-60 drawer slide may also be fitted in the minor axis (flat). However, the load capacity will be reduced by 60-80% of the stated loading. A single SDTSB-60 weighs 10.36 kg per metre.

Key Specifications | Load Capacity vs. Length

Suitable for the following applications

Additional information
Width

18mm

extension-length

200mm

,

250mm

,

300mm

,

350mm

,

400mm

,

450mm

,

500mm

,

550mm

,

600mm

,

650mm

,

700mm

,

750mm

,

800mm

,

850mm

,

900mm

,

950mm

,

1000mm

,

1050mm

,

1100mm

,

1150mm

,

1200mm

,

1250mm

,

1300mm

,

1350mm

,

1400mm

,

1450mm

,

1500mm

,

1550mm

,

1600mm

,

1650mm

,

1700mm

,

1750mm

,

1800mm

,

1850mm

,

1900mm

,

1950mm

,

2000mm

height-of-the-slide

60mm

Installation-Length

1000mm

,

1050mm

,

1100mm

,

1150mm

,

1200mm

,

1250mm

,

1300mm

,

1350mm

,

1400mm

,

1450mm

,

1500mm

,

1550mm

,

1600mm

,

1650mm

,

1700mm

,

1750mm

,

1800mm

,

1850mm

,

1900mm

,

1950mm

,

2000mm

,

200mm

,

250mm

,

300mm

,

350mm

,

400mm

,

450mm

,

500mm

,

550mm

,

600mm

,

650mm

,

700mm

,

750mm

,

800mm

,

850mm

,

900mm

,

950mm

load-capacity

160kg

,

165kg

,

170kg

,

175kg

,

180kg

,

185kg

,

190kg

,

195kg

,

200kg

,

205kg

,

210kg

,

215kg

,

220kg

,

225kg

,

230kg

,

235kg

,

240kg

,

250kg

,

260kg

,

270kg

,

280kg

,

300kg

,

320kg

,

340kg

,

360kg

,

370kg

,

380kg

,

390kg

,

400kg

,

410kg

,

420kg

,

430kg

,

440kg

material-type

Stainless steel 316 L

slide-type

Bi directional

widght-of-the-slide

30mm

Height

35mm

Load capacity

60kg

,

70kg

,

80kg

,

90kg

,

100kg

,

110kg

,

120kg

,

130kg

,

100kg

,

90kg

,

85kg

,

80kg

,

75kg

,

70kg

,

65kg

,

60kg

,

55kg

,

50kg

Installation Length

150mm

,

200mm

,

250mm

,

300mm

,

350mm

,

400mm

,

450mm

,

500mm

,

550mm

,

600mm

,

650mm

,

700mm

,

750mm

,

800mm

,

850mm

,

900mm

,

950mm

,

1000mm

Extension length

150mm

,

200mm

,

250mm

,

300mm

,

350mm

,

400mm

,

450mm

,

500mm

,

550mm

,

600mm

,

650mm

,

700mm

,

750mm

,

800mm

,

850mm

,

900mm

,

950mm

,

1000mm

Material type

Steel C45 E C

Slide Type

Full Extension
